DRIVER

제품명 국내인증 Output Watt
[W]
Output cur.
[A]
Output vol.
[VDC]
Effi.
[%]
Isolated/
Non-Isolated
Ripple Size
[mm]
Download
IT FIT 20/220-240/500 CS KC, CE 21 150/200/250/300/350/400/450/500 23-42 88 SELV <3 97 x 43 x 29.5

Download

IT FIT 30/220-240/700 CS KC, CE 29.4 350/400/450/500/550/600/650/700 23-42 88 SELV <3 97 x 43 x 29.5
IT FIT 40/220-240/1A0 CS KC, CE 44.1 700/750/800/850/900/950/1000/1050 23-42 89 SELV <3 97 x 43 x 29.5
IT FIT 60/220-240/1A4 CS KC, CE 60 825/900/975/1050/1100/1200/1300/1400 27-57 90 SELV <3 103 x 67 x 29.5
OT FIT 20/220-240/500 CS G2 KS, KC 6.5-21 250/350/450/500 25-42 87 SELV <5 97 X 43 X 29.5

Download

OT FIT 30/220-240/700 CS G2 KS, KC 11.5-29.4 500/600/650/700 23-42 89 SELV <5 97 X 43 X 29.5
OT FIT 40/220-240/1A0 CS G2 KS, KC 20-44 800/900/950/1050 25-42 90 SELV <5 97 X 43 X 29.5
OT FIT 8/220-240/180 CS S MINI CE, KC 2.7-7.6 90/120/150/180 30-42 86 SELV <3 87 X 30 X 20

Download

OT FIT 15/220-240/350 CS S MINI CE, KC 6.7-14.7 225/250/325/350 30-42 88 SELV <3 87 X 35 X 22
OT FIT 20/220-240/500 CS S MINI CE, KC 12-21 400/450/475/500 30-42 89 SELV <3 87 x 35 x 22
OT FIT 30/220-240/700 CS S MINI CE, KC 17-29 550/600/650/700 30-42 89 SELV <3 87 x 35 x 22
OT FIT 38/220-240/900 CS S MINI CE, KC 24-37.8 800/850/875/900 30-42 90 SELV <3 87 x 35 x 22
ELEMENT 6/220-240/150 S CE, KC 6.2 150 30-42 79 SELV <30 90 x 43 x 22

Download

ELEMENT 8/220-240/200 S KC,KS report 8.4 200 30-42 82 SELV <30 90 x 43 x 22
ELEMENT 10/220-240/250 S KC,KS report 10.5 250 30-42 85 SELV <30 90 x 43 x 22
ELEMENT 12/220-240/300 S KC,KS report 12.6 300 30-42 85 SELV <30 90 x 43 x 22
ELEMENT 15/220-240/350 S KC,KS report 14.7 350 30-42 86 SELV <30 90 x 43 x 22
ELEMENT 20/220-240/500 S CE, KC 20 500 27-40 87 SELV <30 90 x 43 x 25
ELEMENT 25/220-240/600 S CE, KC 24 600 27-40 87 SELV <30 90 x 43 x 25
ELEMENT 30/220-240/700 S KC,KS report 28 700 27-40 88 SELV <30 90 x 43 x 25
ELEMENT 33/220-240/800 S CE, KC 32 800 27-40 88 SELV <30 90 x 43 x 29
ELEMENT 38/220-240/900 S CE, KC 36 900 27-40 88 SELV <30 90 x 43 x 29
ELEMENT 44/220-240/1050 S CE, KC 42 1050 27-40 90 SELV <30 90 x 43 x 29


INDOOR COMPACT

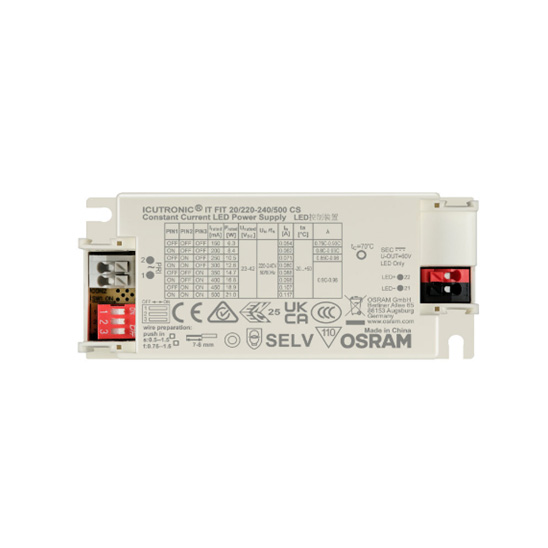

IT FIT 20/220-240/500 CS
  • 특징(Features)
  • Output currents: 150/200/250/300/350/400/450/500mA
  • Low ripple, Low THD
  • Output voltage:23VDC-42VDC
  • Extra small housing
  • Output power: 3.45W - 21W
  • Typ. Efficiency: 87%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50’000 hours lifetime at tcmax = 70°C

INDOOR COMPACT
IT FIT 30/220-240/700 CS
  • 특징(Features)
  • Output currents: 350/400/450/500/550/600/650/700mA
  • Low ripple, Low THD
  • Output voltage:23VDC-42VDC
  • Extra small housing
  • Output power: 8.05W – 29.4W
  • Typ. Efficiency: 88%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50’000 hours lifetime at tcmax = 80°C

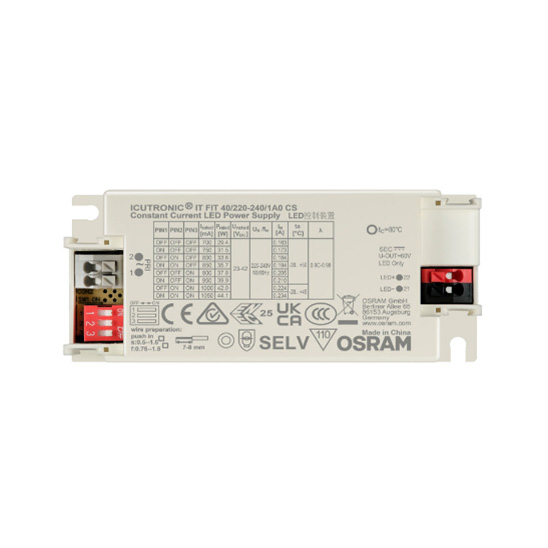

INDOOR COMPACT
IT FIT 40/220-240/1A0 CS
  • 특징(Features)
  • Output currents: 700/750/800/850/900/950/1000/1050mA
  • Low ripple, Low THD
  • Output voltage: 23VDC – 42VDC
  • Extra small housing
  • Output power: 16.1W – 44.1W
  • Typ. Efficiency: 89%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50’000 hours lifetime at tcmax = 80°C

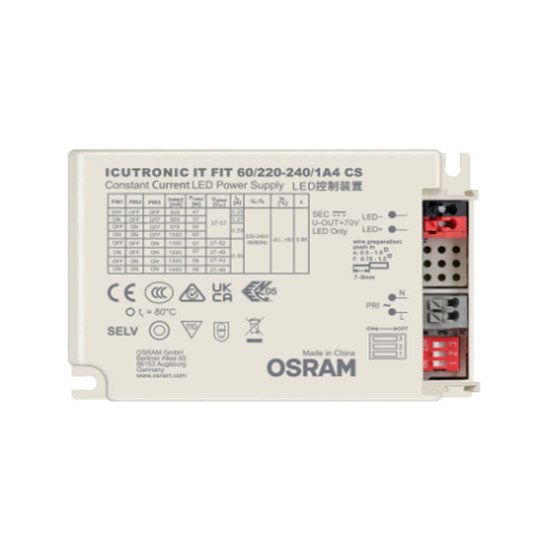

INDOOR COMPACT
IT FIT 60/220-240/1A4 CS
  • 특징(Features)
  • Output currents: 825/900/975/1050/1100/1200/1300/1400mA
  • Low output current ripple <3%
  • Output voltage: 27VDC – 57VDC
  • Low THD <10%@full load
  • Output power: 22W – 60W
  • High efficiency up to 90%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • Up to 50’000 hours lifetime

INDOOR COMPACT

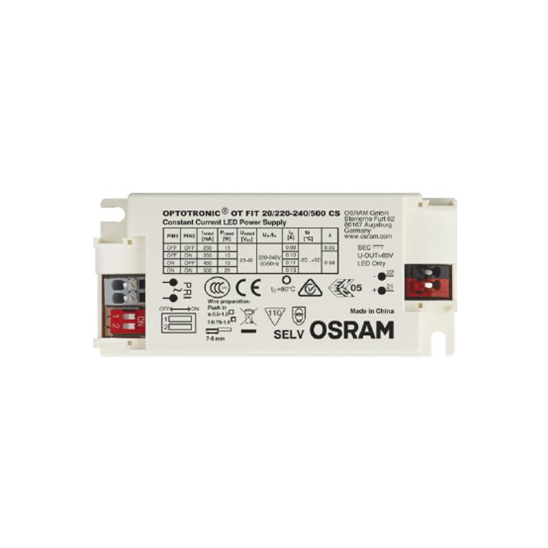

OT FIT 20/220-240/500 CS G2
  • 특징(Features)
  • Output currents: 250/350/450/500mA
  • Low ripple, Low THD
  • Output voltage: 25VDC - 42VDC
  • Extra small housing
  • Output power: 6.5W - 21W
  • Typ. Efficiency: 87%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • Up to 50’000 hours lifetime

INDOOR COMPACT

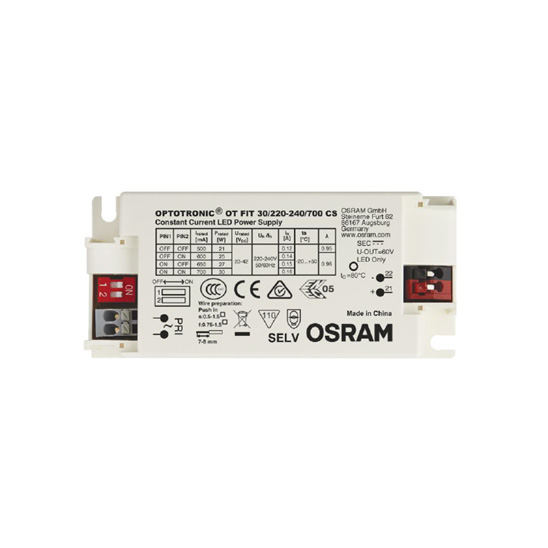

OT FIT 30/220-240/700 CS G2
  • 특징(Features)
  • Output currents :500/600/650/700mA
  • Low ripple; Low THD
  • Output voltage : 23VDC – 42VDC
  • Extra small housing
  • Output power : 11.5W – 29.4W
  • Typ. Efficiency : 89%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output (no dimming)
  • Up to 50’000 hours lifetime

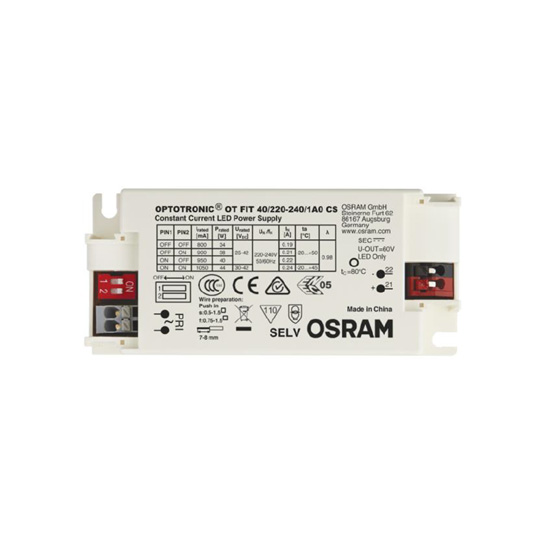

INDOOR COMPACT
OT FIT 40/220-240/1A0 CS G2
  • 특징(Features)
  • Output currents: 800/900/950/1050mA
  • Low ripple, low THD
  • Output voltage: 25VDC – 42VDC
  • Extra small housing
  • Output power: 20W - 44W
  • Typ. Efficiency: 90%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • Up to 50’000 hours lifetime

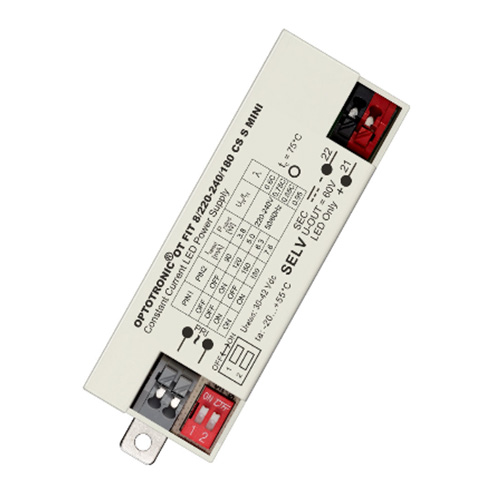

INDOOR COMPACT
OT FIT 8/220-240/180 CS S MINI
  • 특징(Features)
  • Output currents: 90/120/150/180mA
  • Mini size housing
  • Output voltage: 30VDC – 42VDC
  • Low output current ripple < 3%
  • Output power: 2.7W - 7.6W
  • Typ. Efficiency: 86%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • Up to 100’000 hours lifetime

INDOOR COMPACT
OT FIT 15/220-240/350 CS S MINI
  • 특징(Features)
  • Output currents: 225/250/325/350mA
  • Mini size housing
  • Output voltage: 30VDC – 42VDC
  • Low output current ripple < 3%
  • Output power: 6.7W - 14.7W
  • High efficiency up to 88%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50'000 hours lifetime at tc max 75℃

INDOOR COMPACT
OT FIT 20/220-240/500 CS S MINI
  • 특징(Features)
  • Output currents: 400/450/475/500mA
  • Mini size housing
  • Output voltage: 30VDC – 42VDC
  • Low output current ripple < 3%
  • Output power: 12W - 21W
  • High efficiency up to 89%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50'000 hours lifetime at tc max 80℃

INDOOR COMPACT

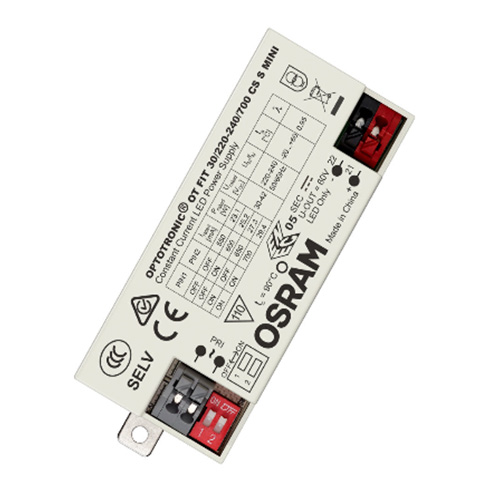

OT FIT 30/220-240/700 CS S MINI
  • 특징(Features)
  • Output currents: 550/600/650/700mA
  • Mini size housing
  • Output voltage: 30VDC – 42VDC
  • Low output current ripple < 3%
  • Output power: 17W - 29W
  • High efficiency up to 89%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50'000 hours lifetime at tc max 90℃

INDOOR COMPACT

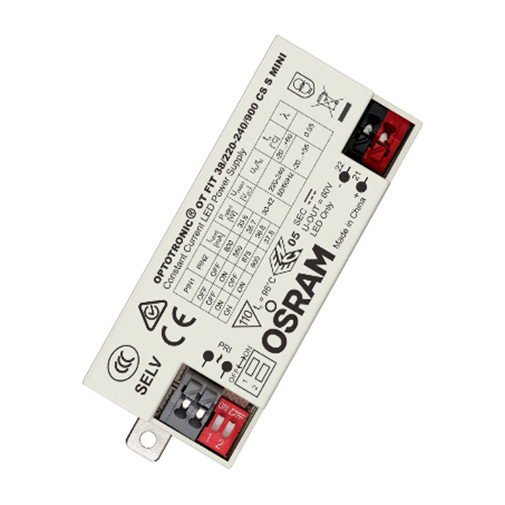

OT FIT 38/220-240/900 CS S MINI
  • 특징(Features)
  • Output currents: 800/850/875/900mA
  • Mini size housing
  • Output voltage: 30VDC – 42VDC
  • Low output current ripple < 3%
  • Output power: 24W - 37.8W
  • High efficiency up to 90%
  • Suitable for class I and II luminaires
  • SELV
  • Fixed Output ( no dimming)
  • 50'000 hours lifetime at tc max 85℃

INDOOR COMPACT

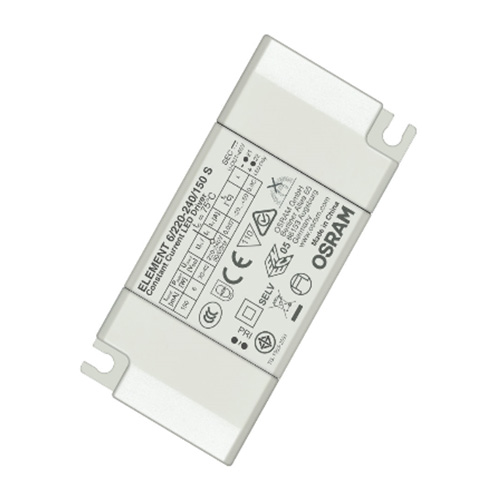

ELEMENT 6/220-240/150 S
  • 특징(Features)
  • Output currents: 150mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 30VDC – 42VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 4.5W - 6.3W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : 79%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

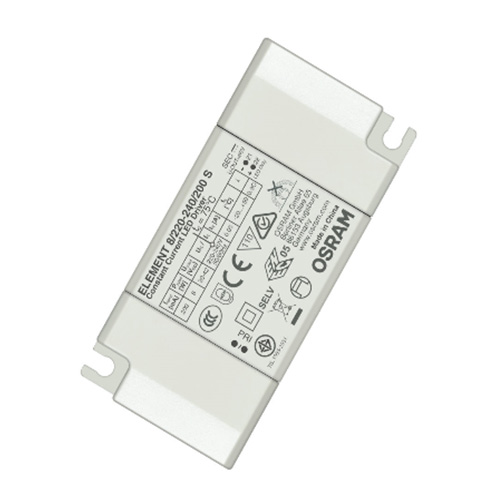

INDOOR COMPACT
ELEMENT 8/220-240/200 S
  • 특징(Features)
  • Output currents: 200mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 30VDC – 42VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 6W - 8.4W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : 82%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

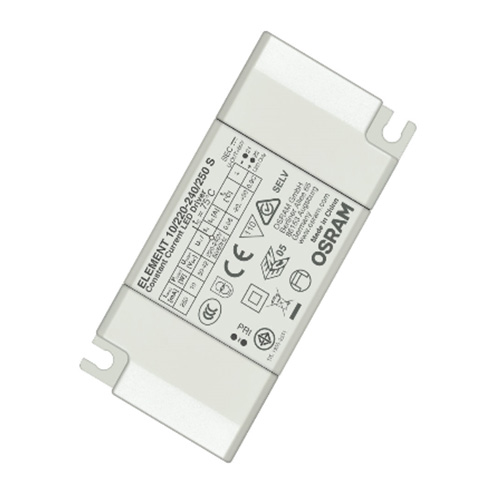

ELEMENT 10/220-240/250 S
  • 특징(Features)
  • Output currents: 250mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 30VDC – 42VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 9W - 12.6W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : 85%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

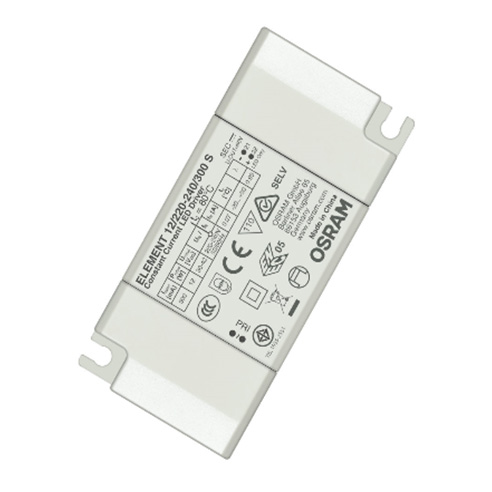

ELEMENT 12/220-240/300 S
  • 특징(Features)
  • Output currents: 300mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 30VDC – 42VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 9W - 12.6W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥85%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

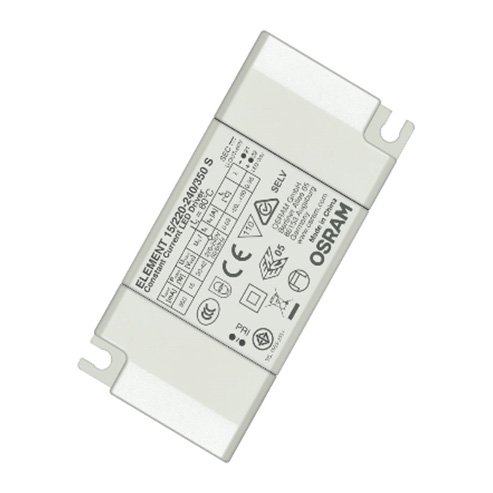

INDOOR COMPACT
ELEMENT 15/220-240/350 S
  • 특징(Features)
  • Output currents: 350mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 30VDC – 42VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 9W - 12.6W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥86%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

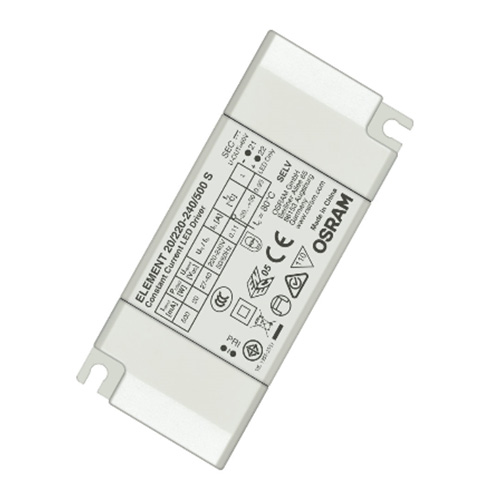

ELEMENT 20/220-240/500 S
  • 특징(Features)
  • Output currents: 500mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 13.5W - 20W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥87%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

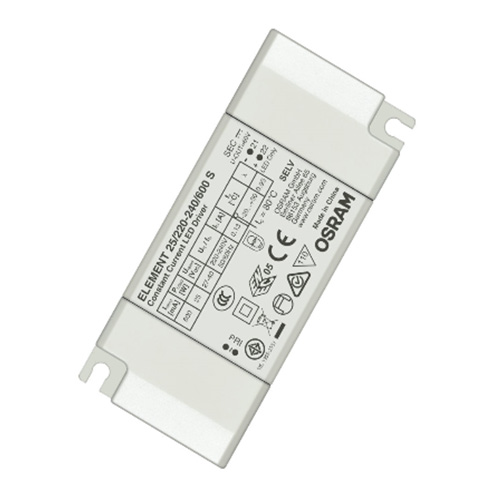

INDOOR COMPACT
ELEMENT 25/220-240/600 S
  • 특징(Features)
  • Output currents: 600mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 16.5W - 24W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥87%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

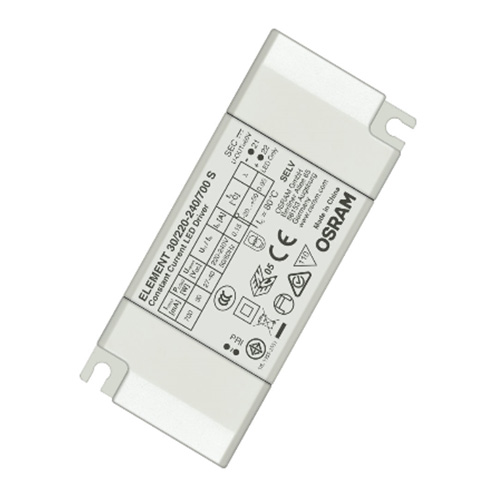

ELEMENT 30/220-240/700 S
  • 특징(Features)
  • Output currents: 700mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 19W - 28W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥88%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

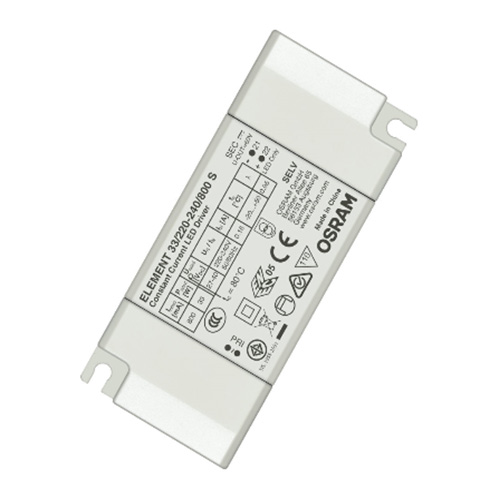

ELEMENT 33/220-240/800 S
  • 특징(Features)
  • Output currents: 800mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 21.6W - 32W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥88%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 80℃

INDOOR COMPACT

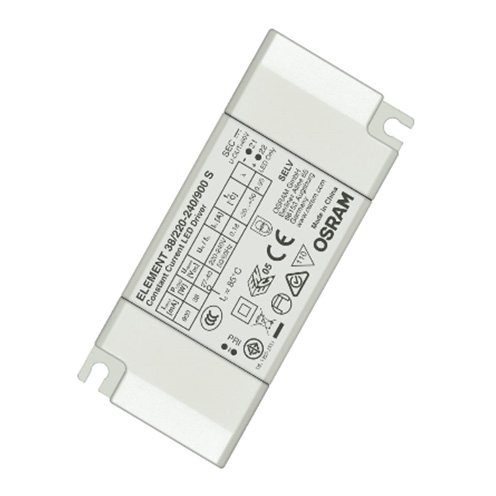

ELEMENT 38/220-240/900 S
  • 특징(Features)
  • Output currents: 900mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : 80℃
  • Output power: 24.5W - 36W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : ≥88%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = 85℃

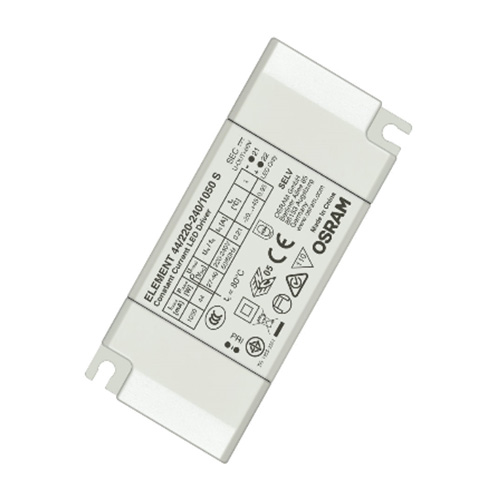

INDOOR COMPACT
ELEMENT 44/220-240/1050 S
  • 특징(Features)
  • Output currents: 1050mA
  • Ambient temp range,ta : -20℃ to +50℃
  • Output voltage: 27VDC – 40VDC
  • Max. case temperature at tc point : tbd℃
  • Output power: 28.5W - 42W
  • SELV(<60V)
  • Input voltage : 220-240 VAC
  • Suitable for class I and II luminaires
  • Typ. Efficiency : 90%
  • Fixed Output (i.e. no dimming)
  • 30'000 hours lifetime at tc = TBD℃
