DRIVER

제품명 국내인증 Output Watt
[W]		 Output cur.
[A]		 Output vol.
[VDC]		 Effi.
[%]		 Isolated/
Non-Isolated		 Ripple Size
[mm]		 Driver Selector
EM FIT 18/220-240/350 CS L KC, CE 17.85 200/250/300/350 27-51 84 SELV ＜10 210 x 30 x 21

Download
EM FIT 40/220-240/800 CS L KC, CE 40.8 500/600/700/800 27-51 87 SELV ＜10 210 x 30 x 21
EM FIT 60/220-240/1A2 CS L KC, CE 61.2 900/1050/1100/1200 27-51 88 SELV ＜10 280 x 30 x 21
EM FIT 75/220-240/1A6 CS L KC, CE 81.6 1300/1400/1500/1600 27-51 89 SELV ＜10 280 x 30 x 21
EM FIT 35/220-240/700 CS F L KC, CE 37.8 500/570/620/700 30-54 85 SELV ＜5 260 x 23 x 16.5
EM FIT 65/220-240/1A5 CS F L KC, CE 67.5 1000/1250/1400/1500 30-45 88 SELV ＜5 310 x 23 x 16.5
EM FIT 90/220–240/2A0 CS F L KC, CE 90 1500/1750/1850/2000 30-45 89 SELV ＜5 360 x 23 x 16.5
EM DIM 35/220-240/700 CS F L KC, CE 37.8 500/570/620/700 30-45 85 SELV ＜5 260 x 23 x 16.5
EM DIM 65/220-240/1A5 CS F L KC, CE 67.5 1000/1250/1400/1500 30-45 88 SELV ＜5 310 x 23 x 16.5
EM DIM 90/220–240/2A0 CS F L KC, CE 90 1500/1750/1850/2000 30-45 89 SELV ＜5 360 x 23 x 16.5
OT FIT 35/220-240/700 CS L AP KS,KC 30-75.6 500/600/650/700 27-54 87 SELV ＜5 360X30X21

Download
OT FIT 55/220-240/1A0 CS L AP KS,KC 21.6-56.7 800/900/975/1050 27-54 90 SELV ＜5 280X30X21
OT FIT 75/220-240/1A4 CS L AP KS,KC 13.5-37.8 1100/1200/1300/1400 27-54 88 SELV ＜5 280X30X21
Element 22/220-240/570 L KC,KS report <25 570 15-38 87 SELV <20 210X30X21

Download
Element 35/220-240/800 CS L KC,KS report 11.5-40 500/600/700/800 23-51 88 SELV <20 210x30x21

Download
Element 55/220-240/1200 CS L KC,KS report 21-61 920/1050/1075/1200 21-61 89 SELV <20 210X30X21
OTi DALI 35/220-240/700 LT2 L KS,KC 4-35 200-700 20-54 90 SELV ＜1 360X30X21

Download
OTi DALI 50/220-240/1A4 LT2 L KS,KC 20-54 600-1400 27-54 90 SELV ＜1 360X30X21
OT FIT 25/220-240/600 S L KS,KC 19.2-27 600 32-45 87 SELV ＜5 170X48X13.5

Download
OT FIT 45/220-240/1A0 S L KS,KC 33.6-47 1050 32-45 90 SELV ＜5 170X48X13.5
ELEMENT 25 / 220 – 240 / 570 L KC,KS report 14.25-22.8 570 25-40 87 SELV ＜5 240X25X16

Download
ELEMENT 25 / 220 – 240 / 600 L LR KC,KS report 18-25.2 600 30-42 87 SELV ＜5 240X25X16
ELEMENT 30 / 220 – 240 / 710 L LR KC,KS report 21.3-29.8 710 30-42 87 SELV ＜5 240X25X16
ELEMENT 45 / 220 – 240 / 1100 L LR KC,KS report 33-46.2 1100 30-42 89 SELV ＜5 240X25X16
ELEMENT 45 / 220 – 240 / 1200 L LR KC,KS report 36-50.4 1200 30-42 89 SELV ＜5 240X25X16


INDOOR COMPACT

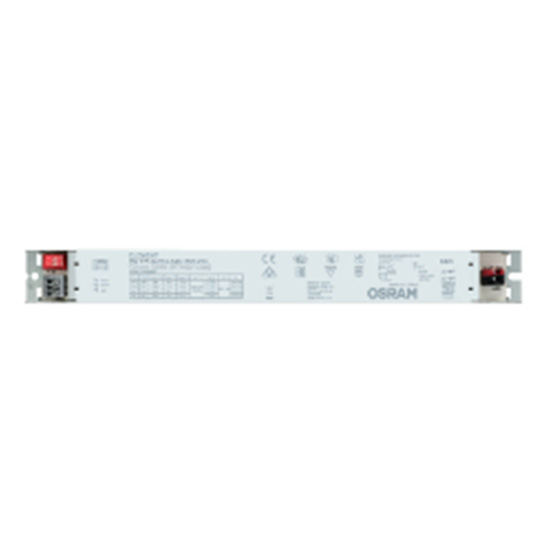

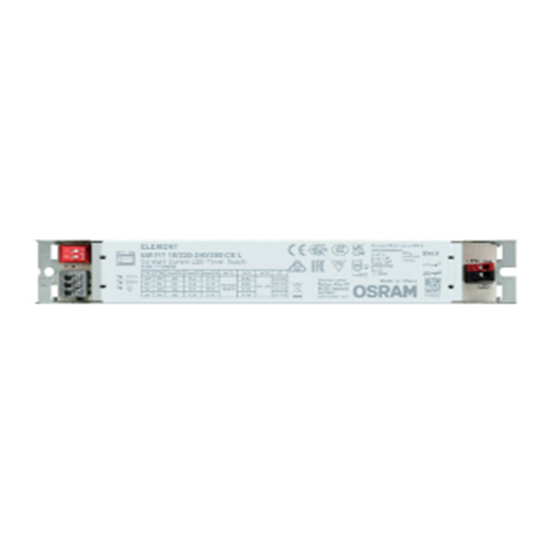

EM FIT 18/220-240/350 CS L
  • 특징(Features)
  • Output currents: 200/250/300/350mA
  • High light quality due to low ripple current
  • Output voltage: 27VDC-51VDC
  • Wide output voltage range
  • Output power: 5.4 -17.85W
  • Efficiency up to : 84%
  • Line frequency: 50 Hz | 60 Hz
  • SELV driver
  • Fixed Output (no dimming)
  • Lifetime: up to 50,000 h
  • Current set (DipSwitch)

INDOOR COMPACT

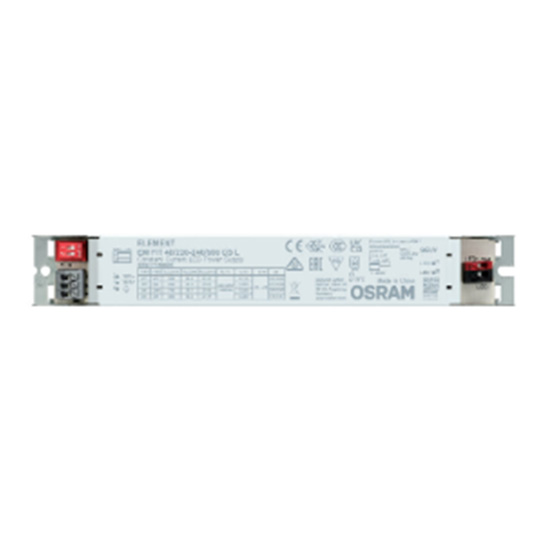

EM FIT 40/220-240/800 CS L
  • 특징(Features)
  • Output currents: 500/600/700/800mA
  • High light quality due to low ripple current
  • Output voltage: 27VDC-51VDC
  • Small housing design
  • Output power: 13.5 - 40.8 W
  • Efficiency up to : 87 %
  • Suitable for class I and II luminaires
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 85 °C
  • Current set (DipSwitch)

INDOOR COMPACT

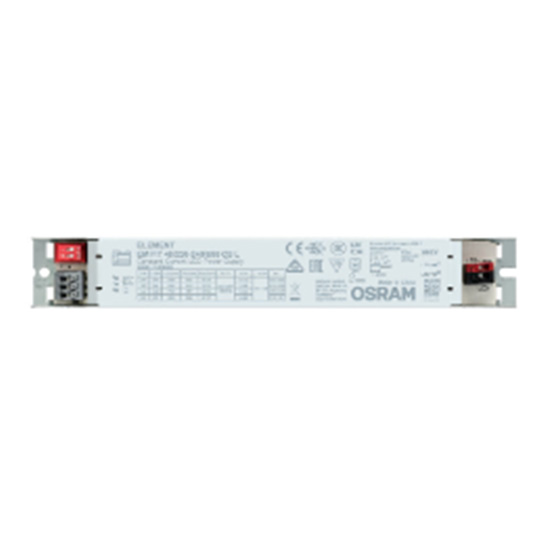

EM FIT 60/220-240/1A2 CS L
  • 특징(Features)
  • Output currents:900/1050/1100/1200 mA
  • High light quality due to low ripple current
  • Output voltage: 27VDC - 51VDC
  • Small housing design
  • Output power: 24.3 - 61.2 W
  • Efficiency up to : 88 %
  • Suitable for class I and II luminaires
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 85 °C
  • Current set (DipSwitch)

INDOOR COMPACT
EM FIT 75/220-240/1A6 CS L
  • 특징(Features)
  • Output currents: 1300/1400/1500/1600 mA
  • High light quality due to low ripple current
  • Output voltage: 27VDC – 51VDC
  • Small housing design
  • Output power: 35.1 - 81.6 W
  • Efficiency up to : 89 %
  • Suitable for class I and II luminaires
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 85 °C
  • Current set (DipSwitch)

INDOOR COMPACT
EM FIT 35/220-240/700 CS F L
  • 특징(Features)
  • Output currents: 500/570/620/700mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 54VDC
  • Office - industrial - shop lighting
  • Output power: 15-37.8W
  • Efficiency up to : 85%
  • Suitable for class I and II fixture
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 75°C / 65°C

INDOOR COMPACT
EM FIT 65/220-240/1A5 CS F L
  • 특징(Features)
  • Output currents: 1000/1250/1400/1500mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 45VDC
  • Office - industrial - shop lighting
  • Output power: 30-67.5W
  • Efficiency up to : 88%
  • Suitable for class I and II fixture
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 75°C / 65°C

INDOOR COMPACT
EM FIT 90/220–240/2A0 CS F L
  • 특징(Features)
  • Output currents: 1500/1750/1850/2000mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 45VDC
  • Office - industrial - shop lighting
  • Output power: 45-90W
  • Efficiency up to : 89%
  • Suitable for class I fixture
  • SELV driver
  • Fixed Output ( no dimming)
  • Lifetime: 35,000 / 50,000 h at tcmax 80°C / 70°C

INDOOR COMPACT
EM DIM 35/220-240/700 CS F L
  • 특징(Features)
  • Output currents: 500/570/620/700mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 54VDC
  • Office - industrial - shop lighting
  • Output power: 15-37.8W
  • Efficiency up to : 85%
  • Suitable for class I and II fixture
  • SELV driver
  • Fixed Output ( Dimming )
  • Lifetime: 35,000 / 50,000 h at tcmax 75°C / 65°C
  • Dimming method 0-10V
  • Dim to off functionality
  • Dimming range 3~100 %

INDOOR COMPACT
EM DIM 65/220-240/1A5 CS F L
  • 특징(Features)
  • Output currents: 1000/1250/1400/1500mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 45VDC
  • Office - industrial - shop lighting
  • Output power: 30-67.5W
  • Efficiency up to : 88%
  • Suitable for class I and II fixture
  • SELV driver
  • Fixed Output ( Dimming )
  • Lifetime: 35,000 / 50,000 h at tcmax 75°C / 65°C
  • Dimming method 0-10V
  • Dim to off functionality
  • Dimming range 3~100 %

INDOOR COMPACT
EM DIM 90/220– 240 /2A0 CS F L
  • 특징(Features)
  • Output currents: 1500/1750/1850/2000mA
  • Constant Current LED Power Supply
  • Output voltage: 30VDC – 45VDC
  • Office - industrial - shop lighting
  • Output power: 45-90W
  • Efficiency up to : 89%
  • Suitable for class I fixture
  • SELV driver
  • Fixed Output ( Dimming )
  • Lifetime: 35,000 / 50,000 h at tcmax 80°C / 70°C
  • Dimming method 0-10V
  • Dim to off functionality
  • Dimming range 3~100 %

INDOOR LINEAR

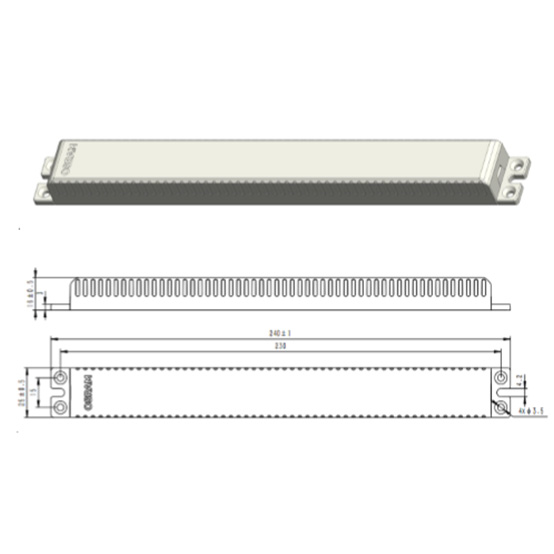

OT FIT 35/220–240/700 CS L AP
  • 특징(Features)
  • Output current: 500/600/650/700mA
  • Low ripple, low THD
  • Output voltage : 27VDC – 54VDC
  • Fixed output (i.e. no dimming)
  • Output power : 13.5W – 37.8W
  • Typ. Efficiency : 87%
  • Input voltage: 220 – 240VAC
  • SELV
  • Ambient temp range ta : -20 to +50°C
  • 50’000 hours lifetime

INDOOR LINEAR

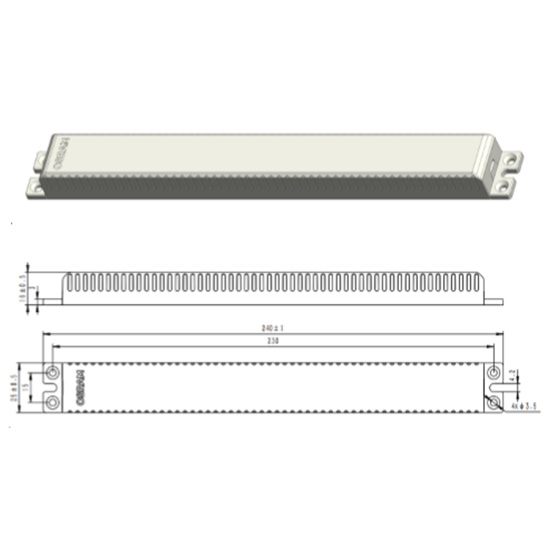

OT FIT 55/220–240/1050 CS L AP
  • 특징(Features)
  • Output current: 800/900/975/1050mA
  • Low ripple, low THD
  • Output voltage : 27VDC – 54VDC
  • Fixed output (i.e. no dimming)
  • Output power : 22 W – 56.7W
  • Typ. Efficiency : 90%
  • Input voltage: 220 – 240VAC
  • SELV
  • Ambient temp range ta : -20 to +50°C
  • 50’000 hours lifetime

INDOOR LINEAR

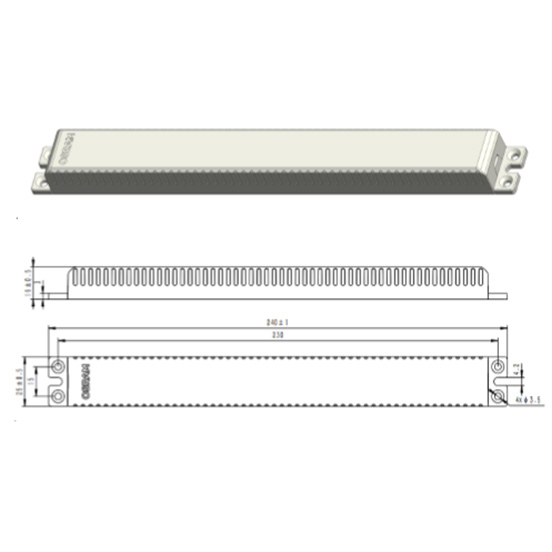

OT FIT 75/220–240/1400 CS L AP
  • 특징(Features)
  • Output current: 1100/200/1300/1400mA
  • Low ripple, low THD
  • Output voltage : 27VDC – 54VDC
  • Fixed output (i.e. no dimming)
  • Output power : 30W – 75.6W
  • Typ. Efficiency : 87%
  • Input voltage: 220 – 240VAC
  • SELV
  • Ambient temp range ta : -20 to +50°C
  • 50’000 hours lifetime

INDOOR LINEAR

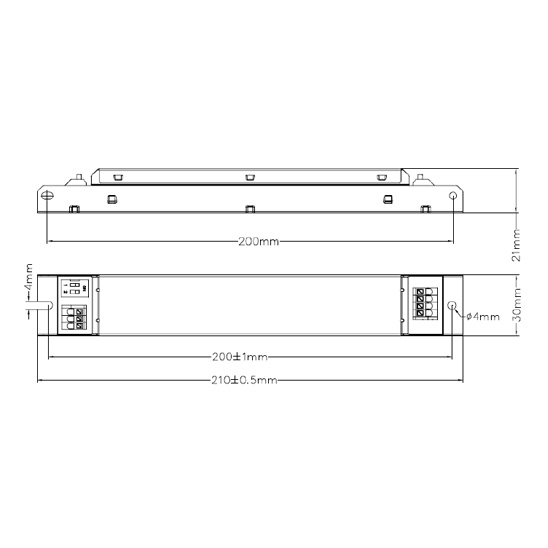

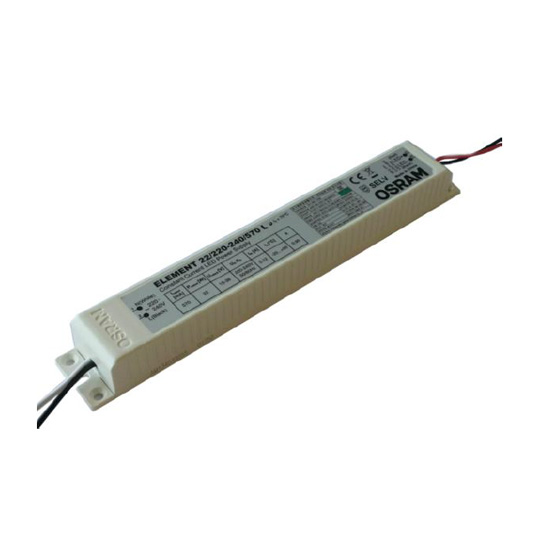

ELEMENT 22/220-240/570 L
  • 특징(Features)
  • Output currents: 570mA
  • High surge up to 2/4kV
  • Output voltage : 15VDC – 38VDC
  • Ambient temp range,ta: -20°C to +50°C
  • Output power : 9W – 21.5W
  • SELV (< 60V)
  • Input voltage : 220 – 240 VAC
  • 35’000 h lifetime at tc max
  • Typ. Efficiency : 87%
  • Fixed Output (no dimming)

INDOOR LINEAR
ELEMENT 35/220-240/800 CS L
  • 특징(Features)
  • Output current: 500/600/700/800mA
  • Fixed output (i.e. no dimming)
  • Output voltage : 23VDC – 51VDCOverload, short & open circuit protection
  • Output power : 11.5W – 40 W
  • Efficiency up to : 88%
  • Low THD < 20% @ full load
  • SELV
  • Power Factor up to 0.98
  • 50,000 hours lifetime at tc= 65C

INDOOR LINEAR
ELEMENT 55/220-240/1200 CS L
  • 특징(Features)
  • Output current: 920/1050/1075/1200mA
  • Fixed output (i.e. no dimming)
  • Output voltage : 23VDC – 51VDC
  • Overload, short & open circuit protection
  • Output power : 21W – 61W
  • Efficiency up to : 89%
  • Low THD < 20% @ full load
  • SELV
  • Power Factor up to 0.98
  • 50,000 hours lifetime at tc= 65C

INDOOR LINEAR

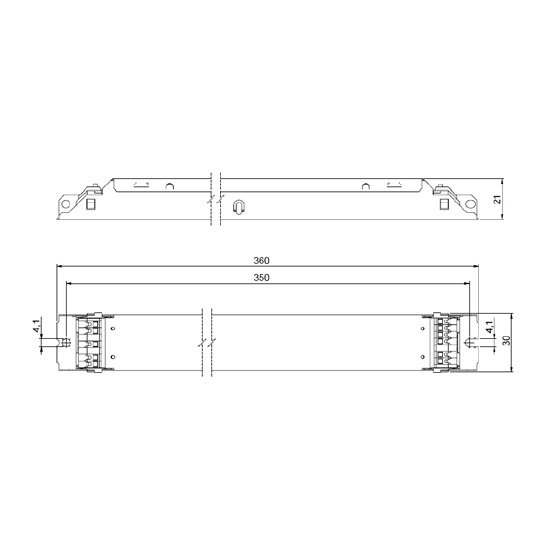

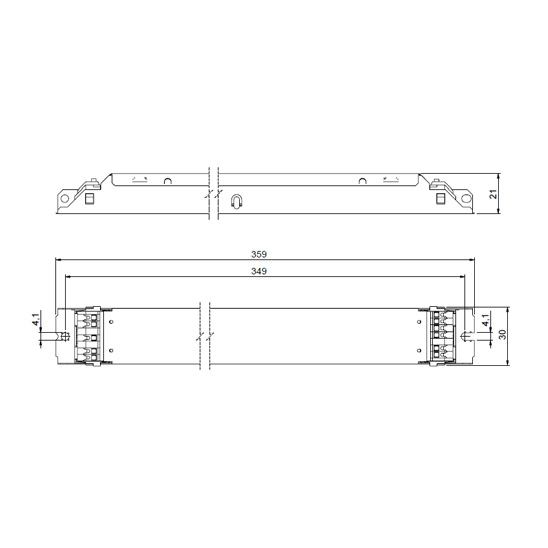

OTi DALI 35/220-240/700 LT2 L
  • 특징(Features)
  • Output current range 200 – 700 mA
  • Overload protection
  • Smart dimming down to 1%
  • Overtemperature protection
  • Zero low frequency ripple
  • Fully digitally configurable
  • SELV equivalent Uout: 20 – 54 V
  • 100’000 h lifetime at tc = 65°C
  • Output power up to 37 W
  • tc max = 75 °C
  • Mains voltage 220 – 240 V
  • Wide ta range -25 – +60 °C
  • Suitable for emergency lighting
  • 5 years guarantee

INDOOR LINEAR

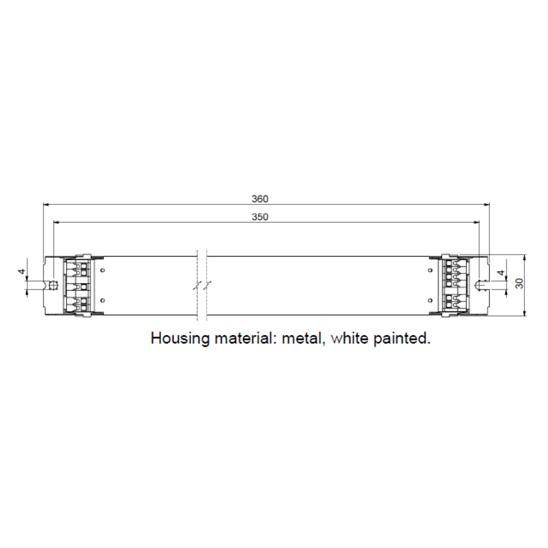

OTi DALI 50/220-240/1A4 LT2 L
  • 특징(Features)
  • Output current range 0.6 – 1.4 A
  • Overload protection
  • Smart dimming down to 1%
  • Overtemperature protection
  • Very low output current ripple
  • Fully digitally programmable
  • SELV equivalent Uout: 20 – 54 V
  • 100’000 h lifetime at tc = 65°C
  • Output power up to 54 W
  • tc max = 75 °C
  • Mains voltage 220 – 240 V
  • Wide ta range -25 – +50 °C
  • Suitable for emergency lighting
  • 5 years guarantee

INDOOR LINEAR

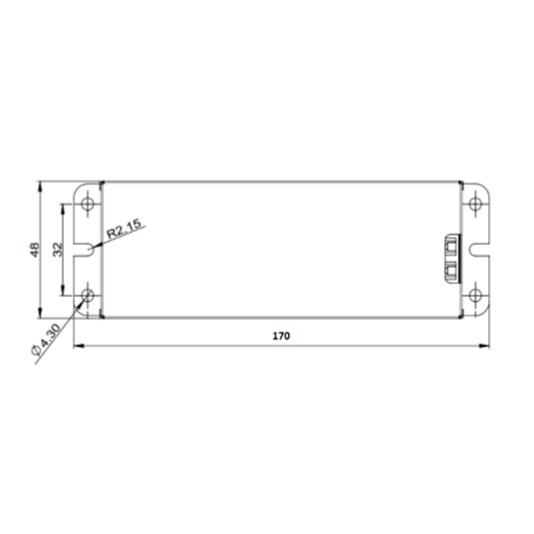

OT FIT 25/220-240/600 S L
  • 특징(Features)
  • Output current : 600mA
  • Ultra slim size : 170 X 48 X 13.5(H)mm
  • Output voltage : 32VDC - 45VDC
  • 50’000 h lifetime
  • Output power : 19.2W - 27W
  • SELV (<60V)
  • Input voltage : 220 – 240 VAC
  • Suitable for class I luminaires
  • Typ. Efficiency : 87%
  • Ambient temp range,ta : -20℃ to +45℃

INDOOR LINEAR
OT FIT 45/220-240/1A0 S L
  • 특징(Features)
  • Output current : 1050mA
  • Ultra slim size : 170 X 48 X 13.5(H)mm
  • Output voltage : 32VDC - 45VDC
  • 50’000 h lifetime
  • Output power : 33.6W - 47W
  • SELV (<60V)
  • Input voltage : 220 – 240 VAC
  • Suitable for class I luminaires
  • Typ. Efficiency : 90%
  • Ambient temp range,ta : -20℃ to +45℃

INDOOR LINEAR
ELEMENT 25 / 220 – 240 / 570 L
  • 특징(Features)
  • Output current : 570mA
  • Low THD < 10% @ full load
  • Output voltage : 25VDC - 40VDC
  • SELV (<60V)
  • Output power : 14.25W - 22.8W
  • Very high efficiency up to 87%
  • Input voltage : 220 – 240 VAC
  • Fixed output (no dimming)
  • Ambient temp range,ta : -20℃ to +50℃
  • 30,000Hrs lifetime @ Tc Max = 75℃

INDOOR LINEAR
ELEMENT 25 / 220 – 240 / 600 L LR
  • 특징(Features)
  • Output current : 600mA
  • Low THD < 10% @ full load
  • Output voltage : 30VDC - 42VDC
  • SELV (<60V)
  • Output power : 18W - 25.2W
  • Very high efficiency up to 87%
  • Input voltage : 220 – 240 VAC
  • Fixed output (no dimming)
  • Ambient temp range,ta : -20℃ to +50℃
  • 30,000Hrs lifetime @ Tc Max = 75℃

INDOOR LINEAR
ELEMENT 30 / 220 – 240 / 710 L LR
  • 특징(Features)
  • Output current : 710mA
  • Low THD < 10% @ full load
  • Output voltage : 30VDC - 42VDC
  • SELV (<60V)
  • Output power : 21.3W - 29.8W
  • Very high efficiency up to 87%
  • Input voltage : 220 – 240 VAC
  • Fixed output (no dimming)
  • Ambient temp range,ta : -20℃ to +50℃
  • 30,000Hrs lifetime @ Tc Max = 75℃

INDOOR LINEAR
ELEMENT 45 / 220 – 240 / 1100 L LR
  • 특징(Features)
  • Output current : 1100mA
  • Low THD < 10% @ full load
  • Output voltage : 30VDC - 42VDC
  • SELV (<60V)
  • Output power : 33W - 46.2W
  • Very high efficiency up to 89%
  • Input voltage : 220 – 240 VAC
  • Fixed output (no dimming)
  • Ambient temp range,ta : -20℃ to +50℃
  • 30,000Hrs lifetime @ Tc Max = 75℃

INDOOR LINEAR
ELEMENT 45 / 220 – 240 / 1200 L LR
  • 특징(Features)
  • Output current : 1200mA
  • Low THD < 10% @ full load
  • Output voltage : 30VDC - 42VDC
  • SELV (<60V)
  • Output power : 36W - 50.4W
  • Very high efficiency up to 89%
  • Input voltage : 220 – 240 VAC
  • Fixed output (no dimming)
  • Ambient temp range,ta : -20℃ to +50℃
  • 30,000Hrs lifetime @ Tc Max = 75℃
