DRIVER

제품명 국내인증 Output Watt
[W]		 Output cur.
[A]		 Output vol.
[VDC]		 Effi.
[%]		 SELV/
NON SELV		 IP Rating Size
[mm]		 Download
EM 100/120-277/700 P7 KC, CE 100 700 100-143 93.5 Non-Isolated IP 67 143.5 x 66 x 33

Download
EM 150/120-277/700 P7 KC, CE 150 700 150-215 94.5 Non-Isolated IP 67 143.5 x 66 x 33
EM 200/120-277/700 P7 KC, CE 200 700 200-285 95.5 Non-Isolated IP 67 150.5 x 66 x 33
EM 250/120-277/700 P7 KC, CE 240 700 240-343 96 Non-Isolated IP 67 150 x 66 x 33
OT 100/220-240/4A2 P5 KS,KC 24-100 1.0-4.2 24-48 88 SELV IP65 212x68x42

Download
OT 150/220-240/4A9 P5 KS,KC 60-150 2.0-4.9 30-60 90 SELV IP65 242x68x42
OT 200/220-240/5A6 P5 KS,KC 70-200 2.0-5.6 35-70 91 SELV IP65 252x68x42
OT 60/220-240/1A4 1DIMA P7 KS,KC 30-60 0.35-1.4 43-86 89 SELV IP67 138x82x38

Download
OT 100/220-240/1A4 1DIMA P7 KS,KC 50-100 0.35-1.4 72-144 91 SELV IP67 177x69x37

Download
OT 150/220-240/1A4 1DIMA P7 KS,KC 75-150 0.35-1.4 107-214 92 SELV IP67 214x69x37
OT 200/220-240/1A4 1DIMA P7 KS,KC 100-200 0.35-1.4 143-286 93 SELV IP67 226x69x37
OT 100/220-240/700 P7 CE,KC 70-100 0.7 100-143 91 SELV IP67 167x60x33

Download
OT 150/220-240/700 P7 CE,KC 105-150 0.7 150-215 94 SELV IP67 167x60x33
OT 200/220-240/700 P7 CE,KC 140-200 0.7 200-285 94 SELV IP67 188x60x33
OT 100/220-240/2A8 P7 CE,KC 10-100 1.5-2.8 27-48 90 SELV IP67 167x60x35

Download
OT 150/220-240/4A2 P7 CE,KC 15-150 2.2-4.2 27-48 93 SELV IP67 188x60x35
OT 200/220-240/5A6 P7 CE,KC 20-200 2.9-5.6 27-48 93 SELV IP67 213x60x35


OUTDOOR

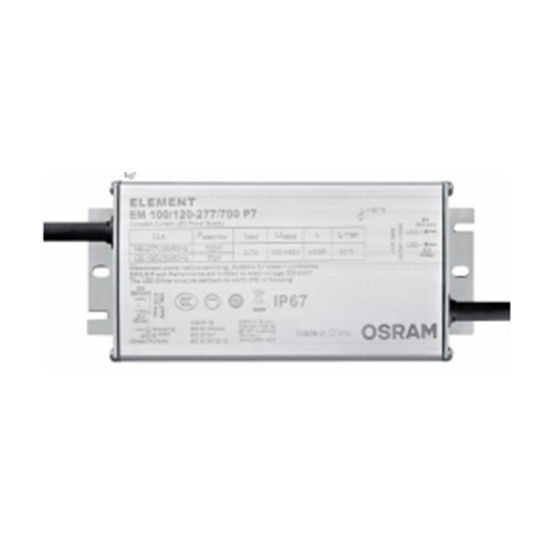

EM 100/120-277/700 P7
  • 특징(Features)
  • Adjustable output current 0.7A
  • Mains voltage 120 – 277 V
  • Output power up to 100 W
  • IP67 (Independent installation)
  • Uout: 100 – 143 Vdc
  • Wide ta range -40°C…+60°C
  • High surge up to 6 kV
  • 50’000 h lifetime at tc = 75 °C
  • Overload, No load, Short-circuit, Output Overvoltage protection
  • 5 years guarantee

OUTDOOR

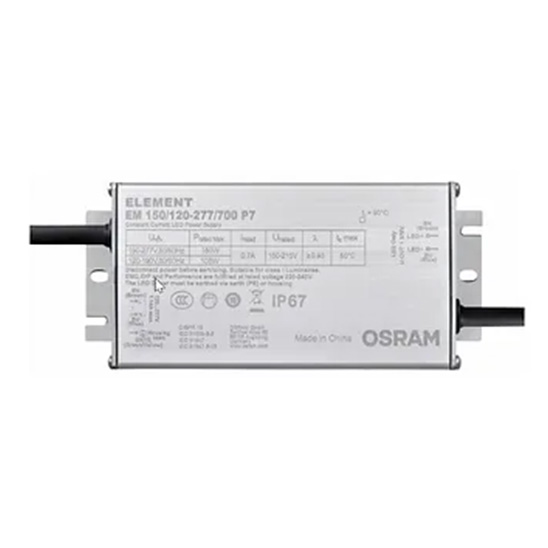

EM 150/120-277/700 P7
  • 특징(Features)
  • Adjustable output current 0.7A
  • Mains voltage 120 – 277 V
  • Output power up to 150 W
  • IP67 (Independent installation)
  • Uout: 150 – 215 Vdc
  • Wide ta range -40°C…+60°C
  • High surge up to 6/6 kV
  • 50’000 h lifetime at tc = 75 °C
  • Overload, No load, Short-circuit, Output Overvoltage protection
  • 5 years guarantee

OUTDOOR

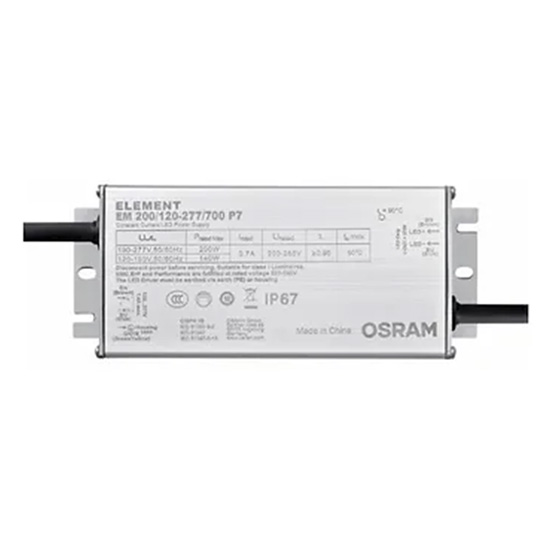

EM 200/120-277/700 P7
  • 특징(Features)
  • Adjustable output current 0.7A
  • Mains voltage 120 – 277 V
  • Output power up to 200 W
  • IP67 (Independent installation)
  • Uout: 200 - 285Vdc
  • Wide ta range -40°C…+60°C
  • High surge up to 6/6 kV
  • 50’000 h lifetime at tc = 75 °C
  • Overload, No load, Short-circuit, Output Overvoltage protection
  • 5 years guarantee

OUTDOOR

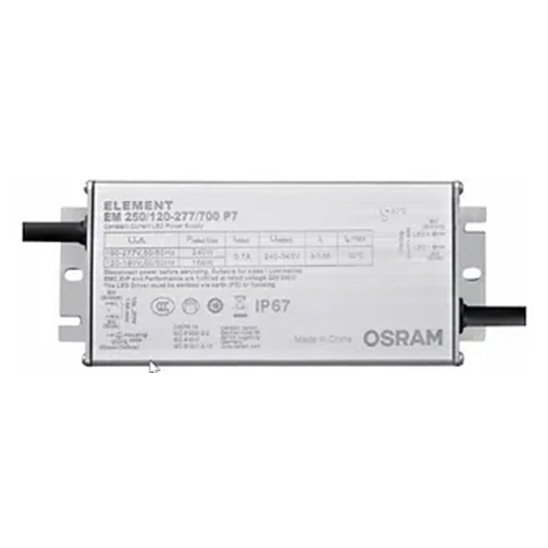

EM 250/120-277/700 P7
  • 특징(Features)
  • Adjustable output current 0.7A
  • Mains voltage 120 – 277 V
  • Output power up to 240 W
  • IP67 (Independent installation)
  • Uout: 240 - 343Vdc
  • Wide ta range -40°C…+60°C
  • High surge up to 6/6 kV
  • 50’000 h lifetime at tc = 75 °C
  • Overload, No load, Short-circuit, Output Overvoltage protection
  • 5 years guarantee

OUTDOOR

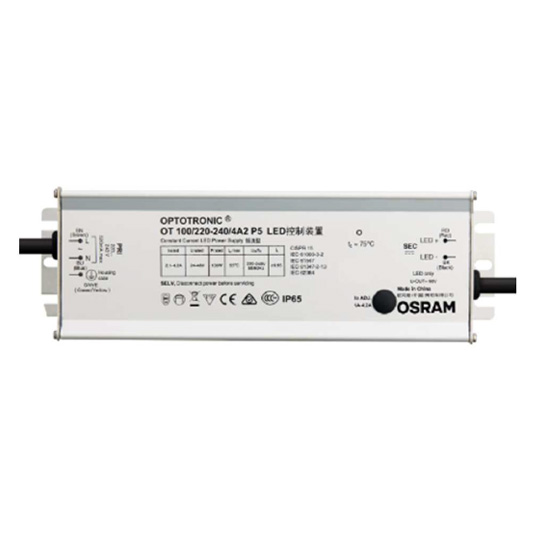

OT 100/220-240/4A2 P5
  • 특징(Features)
  • Adjustable output current 1.0A - 4.2A
  • Mains voltage 220 – 240 V
  • Output power up to 100 W
  • IP65 (Independent installation)
  • Uout: 24 – 48 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 65°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

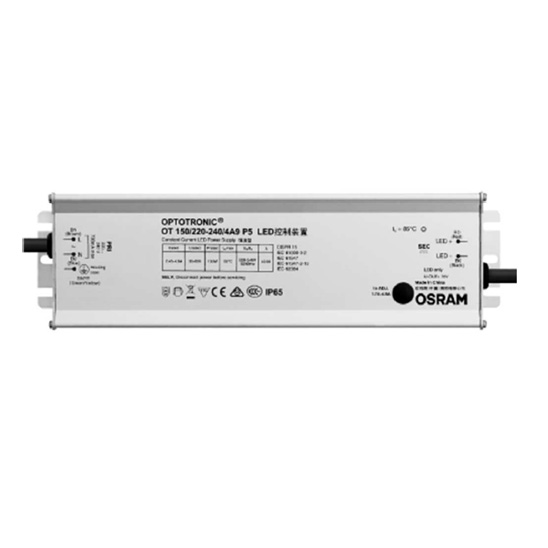

OT 150/220-240/4A9 P5
  • 특징(Features)
  • Adjustable output current 2.0A - 4.9A
  • Mains voltage 220 – 240 V
  • Output power up to 150 W
  • IP65 (Independent installation)
  • Uout: 30 – 60 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

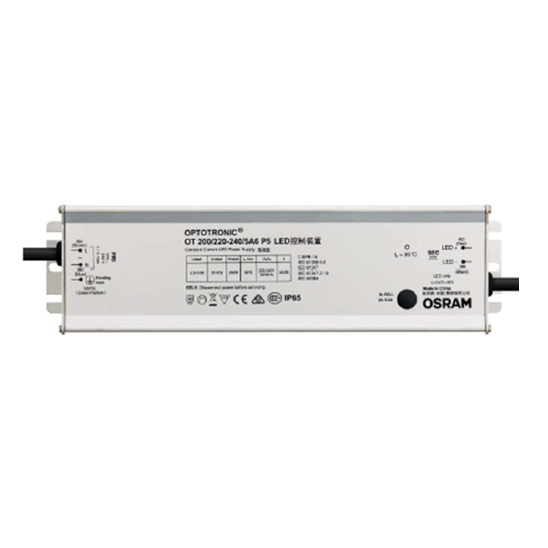

OT 200/220-240/5A6 P5
  • 특징(Features)
  • Adjustable output current 2.0A - 5.6A
  • Mains voltage 220 – 240 V
  • Output power up to 200 W
  • IP65 (Independent installation)
  • Uout: 35 – 70 Vdc
  • Wide ta range -40°C…+50°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

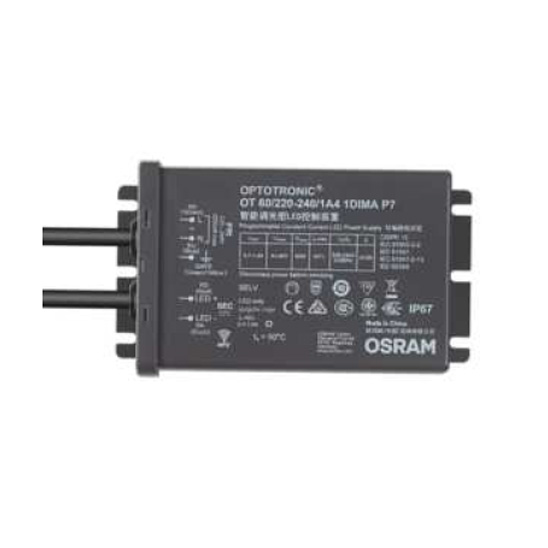

OT 60/220-240/1A4 1DIMA P7
  • 특징(Features)
  • Adjustable output current 0.4A - 1.4A
  • Mains voltage 220 – 240 V
  • Output power up to 60 W
  • IP67 (Independent installation)
  • Uout: 36 – 86 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

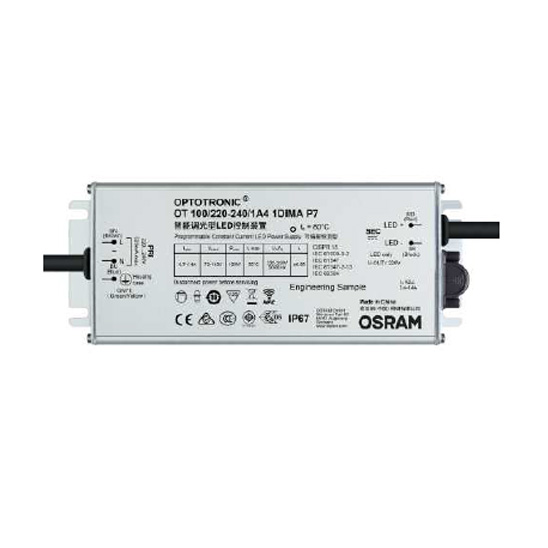

OT 100/220-240/1A4 1DIMA P7
  • 특징(Features)
  • Adjustable output current 0.4A - 1.4A
  • Mains voltage 220 – 240 V
  • Output power up to 100 W
  • IP67 (Independent installation)
  • Uout: 61 – 144 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

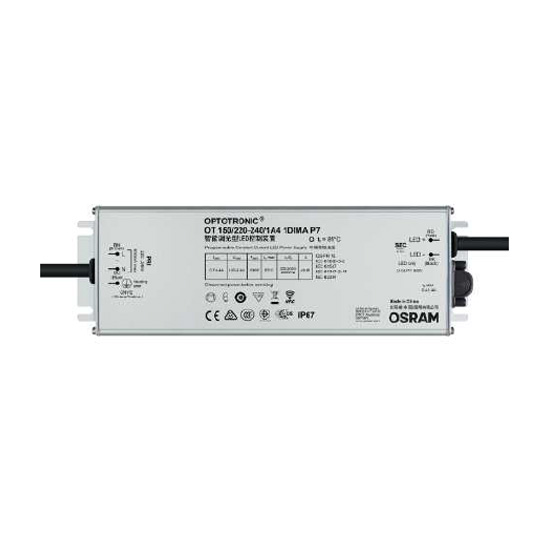

OT 150/220-240/1A4 1DIMA P7
  • 특징(Features)
  • Adjustable output current 0.4A - 1.4A
  • Mains voltage 220 – 240 V
  • Output power up to 150 W
  • IP67 (Independent installation)
  • Uout: 91 – 214 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

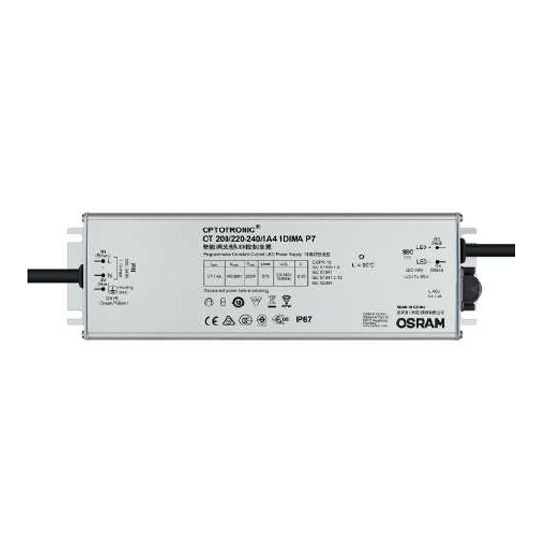

OT 200/220-240/1A4 1DIMA P7
  • 특징(Features)
  • Adjustable output current 0.4A - 1.4A
  • Mains voltage 220 – 240 V
  • Output power up to 200 W
  • IP67 (Independent installation)
  • Uout: 121 – 286 Vdc
  • Wide ta range -40°C…+55°C
  • High surge up to 6kV
  • 100’000 h lifetime at tc = 75°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

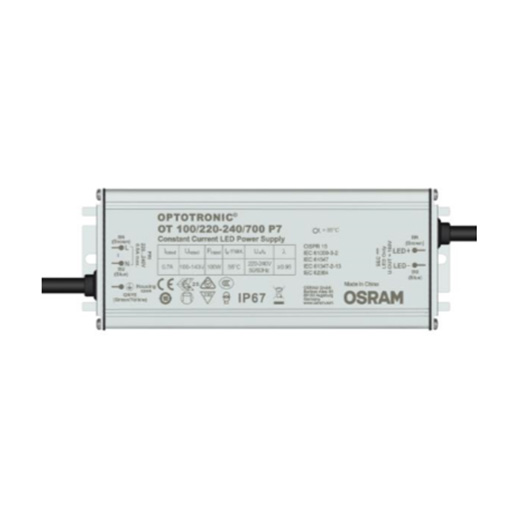

OT 100/220-240/700 P7
  • 특징(Features)
  • Fix output current 700mA
  • Mains voltage 220 – 240 V
  • Output power up to 100 W
  • IP67 (Independent installation)
  • Uout: 100 – 143 Vdc
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 50’000 h lifetime at tc = 80°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

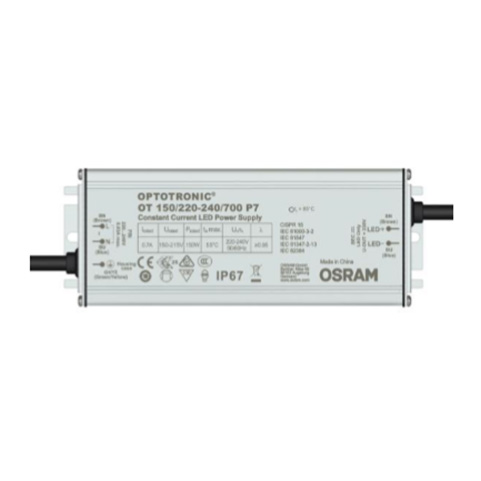

OT 150/220-240/700 P7
  • 특징(Features)
  • Fix output current 700mA
  • Mains voltage 220 – 240 V
  • Output power up to 150 W
  • IP67 (Independent installation)
  • Uout: 150 – 215 Vdc
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 50’000 h lifetime at tc = 80°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR

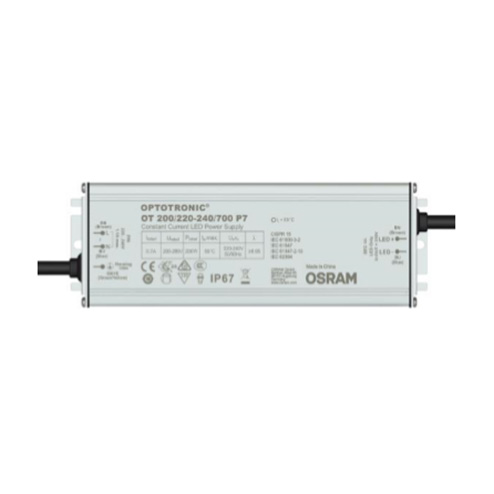

OT 200/220-240/700 P7
  • 특징(Features)
  • Fix output current 700mA
  • Mains voltage 220 – 240 V
  • Output power up to 200 W
  • IP67 (Independent installation)
  • Uout: 200 – 285 Vdc
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 50’000 h lifetime at tc = 80°C
  • Over temperature protection
  • 5 years guarantee

OUTDOOR
OT 100/220-240/2A8 P7
  • 특징(Features)
  • Adjustable output current 1.5A - 2.8A
  • Mains voltage 220 – 240 V
  • Output power up to 100 W
  • IP67 (Independent installation)
  • Uout: 27 – 48 Vdc(SELV)
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 100’000 h lifetime at tc = 70°C
  • 5 years guarantee

OUTDOOR
OT 150/220-240/4A2 P7
  • 특징(Features)
  • Adjustable output current 3.1A - 4.2A
  • Mains voltage 220 – 240 V
  • Output power up to 150 W
  • IP67 (Independent installation)
  • Uout: 27 – 48 Vdc(SELV)
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 100’000 h lifetime at tc = 70°C
  • 5 years guarantee

OUTDOOR
OT 200/220-240/5A6 P7
  • 특징(Features)
  • Adjustable output current 2.9A - 5.6A
  • Mains voltage 220 – 240 V
  • Output power up to 200 W
  • IP67 (Independent installation)
  • Uout: 27 – 48 Vdc(SELV)
  • Wide ta range -40°C…+55°C
  • High surge capacity up to 6kV/10kV
  • 100’000 h lifetime at tc = 65°C
  • 5 years guarantee
